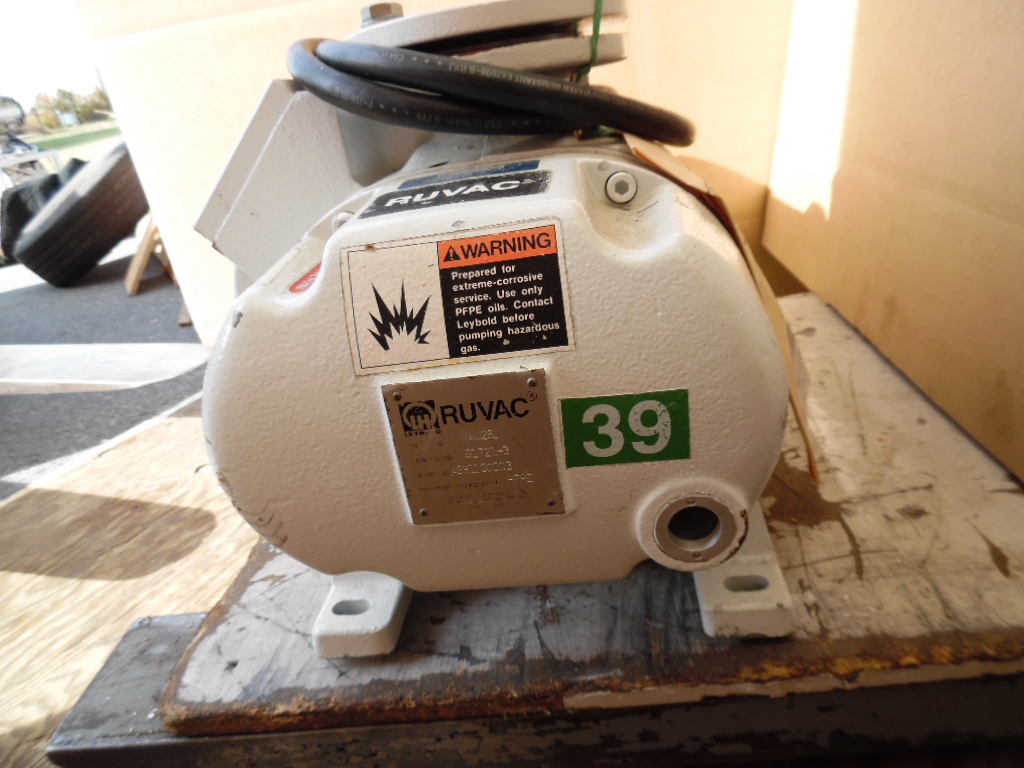

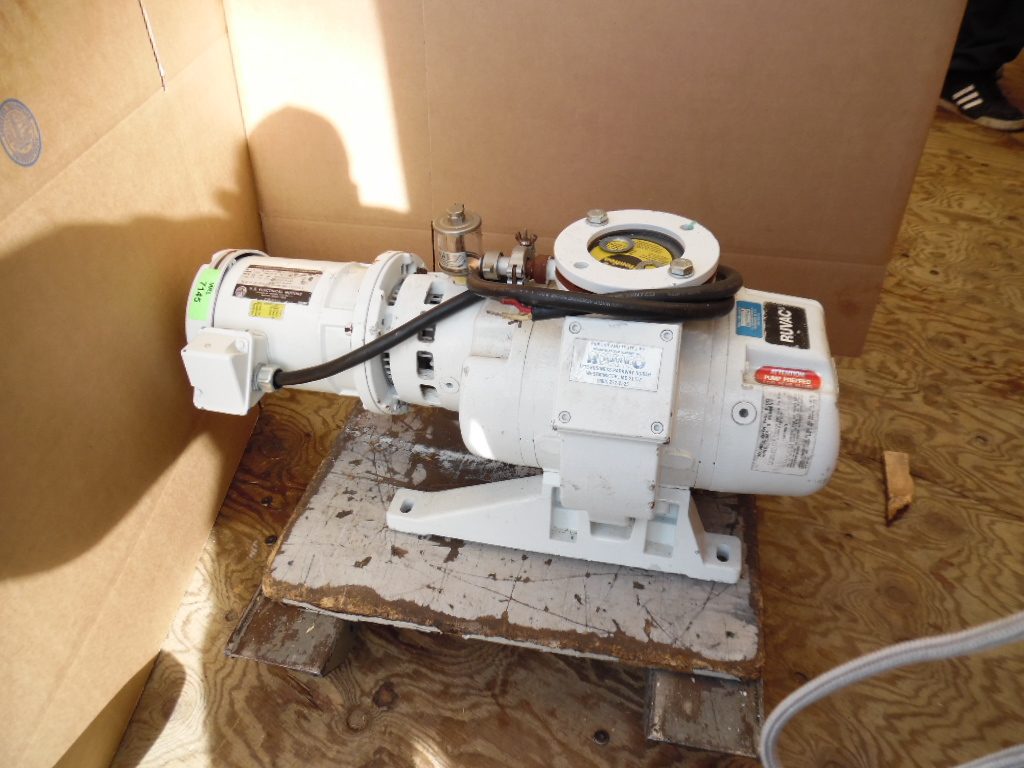

This blower is untested. It should be rebuilt prior to use. For more information please contact us at sales@polvac.com
| Technical Data | 50 Hz | 60 Hz | |
| Nominal Pumping Speed 1) | m3x h-1(cfm) | 253 (149) | 304 (179) |
| Max Pumping Speed with Backing Pump |
m3x h-1(cfm) TRIVAC SOGEVAC |
210 (123.7) D 65B - |
251 (148) D 65 B - |
| Ultimate Partial Pressure 2) | mbar (Torr) | < 2 x 10-5 (< 1.5 x 10-5) | < 2 x 10-5 (< 1.5 x 10-5) |
| Ultimate Total Pressure2) | mbar (Torr) | < 8 x 10-4 (< 6 x 10-4) | < 8 x 10-4 (< 6 x 10-4) |
| Permissable Cut-In Pressure2) RUVAC WA | mbar (Torr) | 90 (67.5) | 60 (45.0) |
| Max. Permissible Pressure Difference During Continuous Operation 3) | mbar (Torr) | 80 (60.0) | 80 (60.0) |
| Main Supply IEC Motor NEMA motor (US version) |
Δ ⁄Y V Δ ⁄Y V |
220-240 / 380-420 230 / 400 |
220-277 / 380-480 200-230 / 460 |
| Thermal Class | F | F | |
| Motor Power | kW (hp) | 1.1 (1.5) | 1.1 (1.5) |
| Nominal Speed, approx. | rpm | 3000/3600 | 3000/3600 |
| Max Permissable Speed | rpm | 3600 | 3600 |
| Type of Protection | IP | 55 | 55 |
| Oil filling for the bearing chamber 4) vertical pumping action, approx. horizontal pumping action, approx. |
l (qt) l (qt) |
1. Filling 5) / 2. Filling 0.65 (0.69) / 0.6 (0.63) 0.5 (0.53) / 0.45 (0.48) |
1. Filling 5) / 2. Filling 0.65 (0.69) / 0.6 (0.63) 0.5 (0.53) / 0.45 (0.48) |
| Oil filling of the shaft sealing ring housing4) |
l (qt) | 0.6 (0.63) | 0.6 (0.63) |
| Connection Flanges 6) |
DN DN |
63 ISO-K 3" ANSI |
63 ISO-K 3" ANSI |
| Weight WA/WAU | kg (lbs) | 85/89 (187.4/196.2) | 85/89 (187.4/196.2) |
| Noise Level 7) | dB(A) | < 64 | < 64 |
- 1) To DIN 28 400 and subsequent numbers
- 2) With double-stage rotary vane vacuum pump TRIVAC, resp. single-stage rotary vane vacuum pump SOGEVAC (Type of backing pump look at max. pumping speed). When using 2-stage backing pumps the ultimate pressures will be correspondingly lower
- 3) Applicable for ratio up to 1 : 10 between backing pump and Roots vacuum pump at 3000 rpm
- 4) Authoriative, however, is the oil level at the oil-level glass
- 5) After a complete disassembly
- 6) US models ANSI flanges
- 7) At an operating pressure below < 10-1 mbar (< 0.75 x 10-1 Torr)
